Morley© ABY Pedal Mod #2 - Stereo Input + Two Mono Outputs

Morley ABY splitter pedal

History & Description of Mod #2 - Stereo Input

Back in 2002, I bought a Morley© ABY splitter box for around $40. This pedal splits a mono input signal into two mono outs. I wanted to build an active buffer for the Morley ABY pedal, and I did.

Here's a wiring diagram of the original Morley© ABY circuit (click to enlarge)

So earlier this week (2010-10-06), Fran M came across the Mod #1 page and emailed me about modifying a mono Morley© ABY to make it into a stereo pedal...and add a stereo buffer to boot. Fran has an acoustic guitar with stereo output (TRS) and would like to pipe the two channels out to A&B, and have switching control.

I thought about it, and came to the conclusion "shouldn't be too hard". Haven't done any effects stuff in a while, so I'd give it a go.

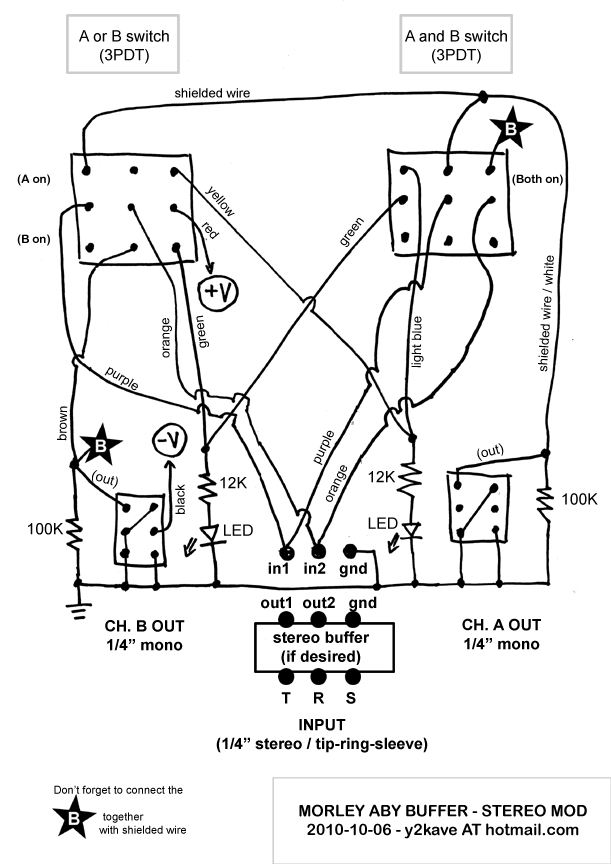

Here's a drawing of the new wiring diagram for stereo version (click to enlarge):

Applications

This could be used to split any TRS (tip-ring-sleeve) input into two mono 1/4" outputs, and switch between the two:

Switch a stereo acoustic guitar between two mono amps
Switch a stereo bass (a la Rick-O-Sound) to two mono amps
Switch a stereo signal between two mono effects chains
Etc.

Disclaimer & Caveats

NOTE: I haven't built this, so I'm not sure that it will work. But if you're inclined, give it a go! I take no responsibility if you screw up, damage your pedal, your equipment, or hurt yourself or someone else as a result of these designs. We're not dealing with high voltages here, but DIY projects come with inherent risks, so be careful and do your own research!

CAVEAT: when you add up the cost of the project, it may actually be cheaper to BUY something like the "Morley ABY Mix Guitar Mixer and Switcher" and a 1/4"-stereo-to-2-1/4"-mono patch cable. This is an inherent quality of DIY guitar projects. Usually DIY only makes sense from a cost standpoint if you meet any one of the following criteria:

You want something totally custom that no one else has
You want to re-build a vintage effect that isn't made anymore that is prohibitively expensive to buy used
You are independently wealthy, like DIY projects, and money + time is no object.

Parts You'll Need

Two 3PDT heavy duty stomp switches (available from Stewmac.com for $12.95/each as of 2010-10-06)
1 enclosed 1/4" stereo (TRS) input jack (available from Small Bear Electronics for about $2)
2-3 feet of some nice, thin shielded wire (like coax wire RG-174) (available from Small Bear Electronics for about $0.55/foot)
Addition thin-gauge wire (#24-26) for rewiring hookups
Usual soldering/construction stuff: soldering iron, solder, wire strippers, solder sucker, heat shrink tubing, etc.
Stereo buffer board (as desired)*

* I don't have plans for a stereo buffer board, but you could probably take the buffer design listed in Mod #1, and using a TL072 dual op-amp in the same DIP-8 package, create a design that has two outputs, with relative ease. I think I had built one of these about 8 years ago or so, but I don't have the schematics available, sorry!

Instructions

Remove the original input jack from the case & PC board. Replace it with the stereo one.
Remove the two original DPDT stomp switches (keep them, they can be used in other projects!) and replace them with 3DPTs.
Re-wire input jack
Rewire switches, paying attention to using shielded cable where necessary. Heat shrink all soldered connections as needed.
Test it out and let me know how it goes!
